Fast Front & Rear maintenance
Modular design
Model(mm): P1.9，P2.3，P2.6

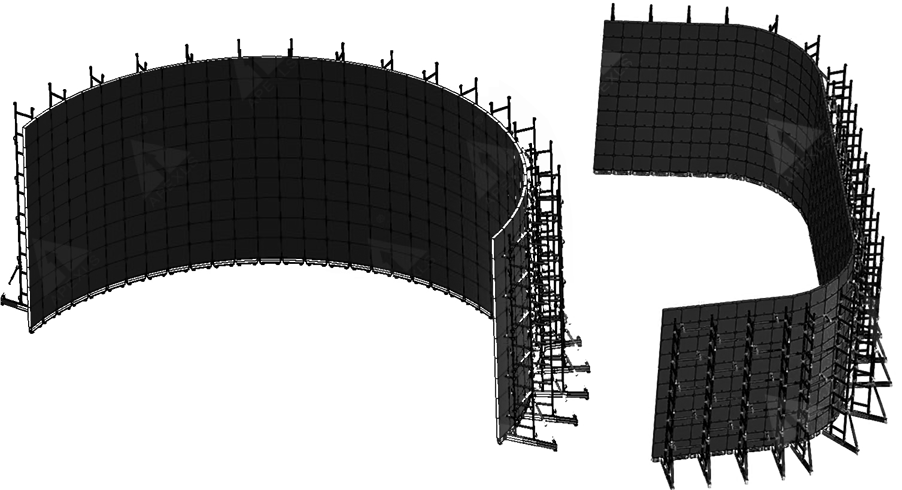

Apexls’ xR Virtual LED display, specially design for the film industry and xR applications, to create a suitable canvas for movie production, The LED screen can be built into any size and shape. The LED panel, video processor and camera working together to achieve amazing video effects. Bring unlimited creativity and effectively, improve the efficiency to film and television program production.
Film shooting, advertisement shooting, TV station, studio, live broadcast, online press conference
Multiple models options, meet various needs. Freely angle adjustable:±2.3°丨±2.8°丨±3.8°丨±5.8° (Angle customizable)

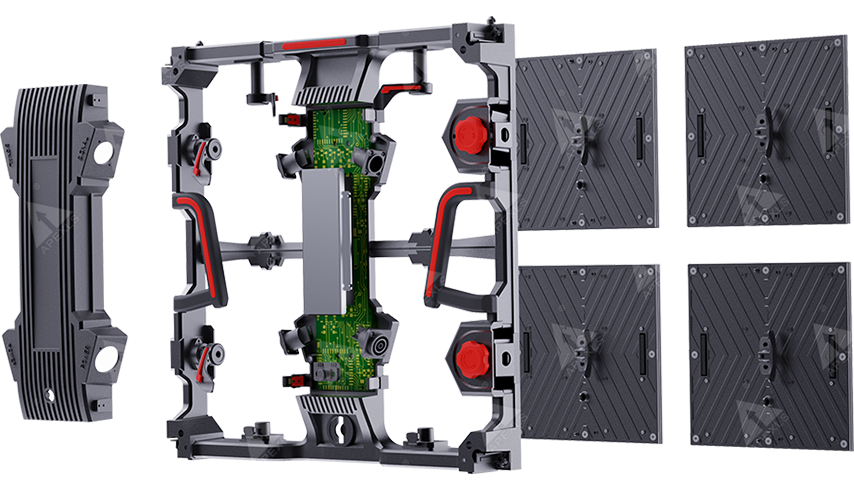

Independent modular design of the led module and control box, with magnetic accessories and quick locking & unlocking system. Fast front & rear installation and maintenance. Independent module’s calibration and setting data saved in each individual module, easy for any independent led module’s replacement and working.
LEDs protections: buffer protection design for every led cabinet corners, greatly reduced the damage of the LEDs. Fast locking system: magnetic auxiliary components and z-axis calibration up and down locking system for fast assemble & disassemble to reduce the LED’s damage.
Independent modular design of the led module and control box, with magnetic accessories and quick locking & unlocking system. Fast front & rear installation and maintenance. Independent module’s calibration and setting data saved in each individual module, easy for any independent led module’s replacement and working.
| xR | Back ground panel Specifications | Ceiling display Specifications | Floor display Specifications | ||||||
| Model | KR1.9 | KR2.3 | KR2.6 | KR2.9 | KR3.9 | KR4.8 | KR3.9-SG | KR4.8-SG | KR5.9-SG |
| LED | SMD1212 | SMD1515 | SMD1515 | 3in1 SMD | 3in1 SMD | 3in1 SMD | 3in1 SMD | 3in1 SMD | 3in1 SMD |
| Pixel Pitch (mm) | 1.9531 | 2.3148 | 2.6041 | 2.9761 | 3.9062 | 4.8076 | 3.9062 | 4.8076 | 5.9523 |
| Density(dots/m²) | 262,144 | 186,624 | 147,456 | 112,896 | 65,536 | 43,264 | 65,536 | 43,264 | 28,224 |
| Brightness﹙after calibrated﹚ | ≥1,200 nit | ≥1,200 nit | ≥1,200 nit | ≥3,000 nit | ≥3,000 nit | ≥3,000 nit | ≥1,500 nit | ≥1,500 nit | ≥1,500 nit |
| Refresh rate﹙Hz﹚ | 7,680 | 7,680 | 7,680 | 3,840-7,680 | 3,840-7,680 | 3,840-7,680 | 7,680 | 7,680 | 7,680 |
| Module size (mm) | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 |
| Module resolution (dots) | 128×128 | 108×108 | 96×96 | 84×84 | 64×64 | 52×52 | 64×64 | 52×52 | 42×42 |
| Panel size (mm) | 500×500 | 500×500 | 500×500 | 500×500 | 500×500 | 500×500 | 500×500 | 500×500 | 500×500 |
| Panel resolution (dots) | 256×256 | 216×216 | 192×192 | 168×168 | 128×128 | 104×104 | 128×128 | 104×104 | 84×84 |
| Scan mode | 1/8 | 1/9 | 1/8 | 1/21 | 1/16 | 1/13 | 1/8 | 1/13 | 1/7 |
| Gray degree﹙bit﹚ | 16 | 14 | 16 | ||||||
| View angle | H160˚/V160˚ | H160˚/V160˚ | H160˚/V160˚ | ||||||
| Controller | Brompton/NOVA | Brompton/NOVA | Brompton/NOVA | ||||||
| Frequency of frames ﹙Hz﹚ | 23.5~240 | 23.5~144 | 23.5~240 | ||||||
| Max Power Consumption (W/m²) | 800 | 800 | 800 | ||||||
| Average Power (W/m²) | 267 | 286 | 267 | ||||||
| Panel weight (kg/pcs) | 8.5 | 8.5 | 10.5 | ||||||
| LED Failure rate (%) | ≤0.02 | ≤0.02 | ≤0.01 | ||||||
| Operation Voltage (V/AC) | 100~240 | 100~240 | 100~240 | ||||||
| Operation temp (℃) | -20~+45 | -20~+40 | -20~+40 | -20~+45 | -20~+40 | -20~+40 | -20~+40 | -20~+40 | -20~+40 |
| Operation Humidity (RH) | 10%-85% | 10%-85% | 10%-85% | 10%-85% | 10%-85% | 10%-85% | 10%-85% | 10%-85% | 10%-85% |
| Storage Temp (℃) | -10~+60 | -10~+50 | -10~+50 | -10~+60 | -10~+50 | -10~+50 | -10~+50 | -10~+50 | -10~+50 |
| Storage Humidity (RH) | 10%-90% | 10%-90% | 10%-90% | ||||||
| LED life span | 100,000 hrs | 100,000 hrs | 100,000 hrs | ||||||
| IP Degree | Indoor | Indoor | IP65 | ||||||
| Installation way | Stand / hanging | Hanging | Guide rail tiled way | ||||||
| Service type | Front / Rear | Front / Rear | Front | ||||||
| Certificate approved | CE、ETL、FCC | CE、ETL、FCC | CE、ETL、FCC | ||||||
| Arc degree range | Inner arc 6˚~Outer arc 6˚ | ||||||||
| Best Viewing distance (m) | 2.45~6.5 | 2.9~7.7 | 3.25~8.67 | ||||||
| Surface Treatment | Macromolecule PC+composite material | ||||||||
| Bearing capacity (kg/m²) | 1,800 | ||||||||
