Multipartition scaling
360 view angle
Model(mm): P1.875，P2，P2.5 ，P3 ，P4
Diameter(m)：1.2，1.5，1.6，1.8，2，2.5，2.6，3，4，5
Unique appearance design, strong visual effect, Can be customized according to project needs. Seat-mounted, hanging, column-mounted are available It is an indispensable part of various halls and stages.
Railway stations，Airports，Large shopping malls，Concerts，Exhibition halls，Science，Museums，Planetarium，Children’s palace，Star hotels
High impact visual, good eye-catching.Both front maintenance and back maintenance are available
Hollow aluminum structural design ,Lightweight design, excellent heat dissipation
Unique and creative, special shape, more attractive audience

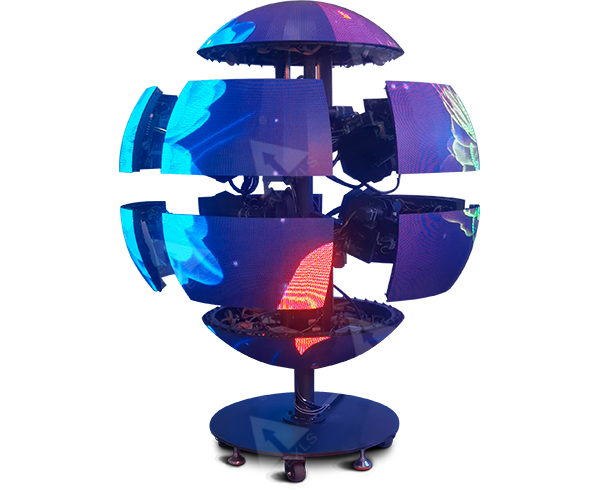

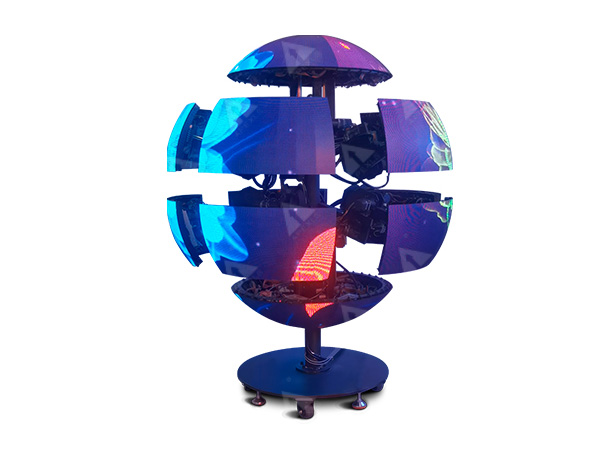

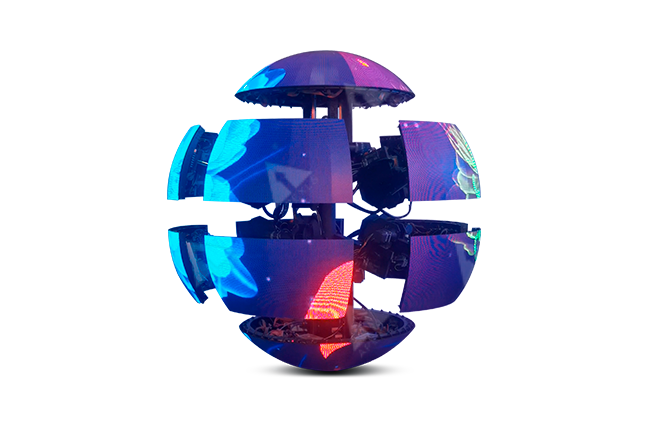

Less than 1.8m diameter it will be delivered as a whole balls. You don’t need to do assemble when you get it. Just power it on,then it will work. More than 1.8m diameter, it will be divided into several parts . You need to assemble it on site.
| Model | P1.8 | P2 | P2.5 | P3 | P4 |
| Pixel Pitch(mm) | 1.875 | 2 | 2.5 | 3 | 4 |
| Diameter(m) | 15, 2.5 | 1.5, 1.6, 2 | 1.2, 1.5, 2 | 1.2, 1.5, 1.6 1.8, 2, 2.6, 3 | 1.5, 1.8 2.2, 2.5, 3, 4 5, 7.5, 8.25 |
| LED Type | SMD1212 | SMD1212/1515 | SMD1515 | SMD1515 | SMD2121 |
| Pixel Density(dots/m2) | 284445 | 250000 | 160000 | 111111 | 62500 |
| Brightness(cd/m2) | 1000 | 1000 | 1000 | 1000 | 1200 |
| Avg Power Consumption(W/m2) | 160 | 160 | 150 | 150 | 150 |
| Max Power Consumption(W/m2) | 480 | 480 | 450 | 450 | 450 |
| Refresh Rate(Hz) | 1,920-3,840 | ||||
| Input Voltage | AC100-240V/50-60Hz | ||||
| Life Span | 100,000 hours | ||||
| Working Temperature | -20°C～60°C | ||||
| Working Humidity(RH) | 10%～90% | ||||
| Gray Scale | 12-16 bit | ||||
