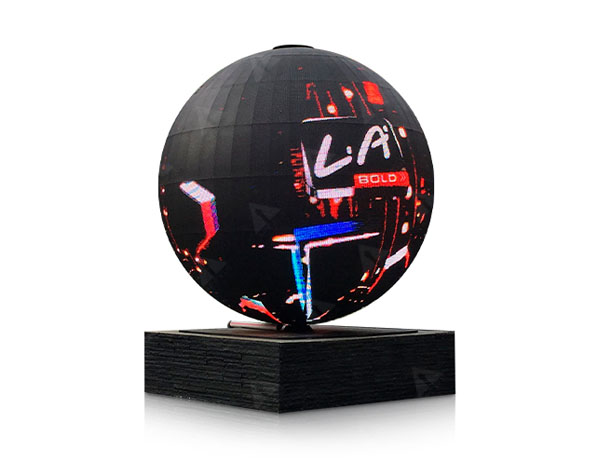

Size Customization

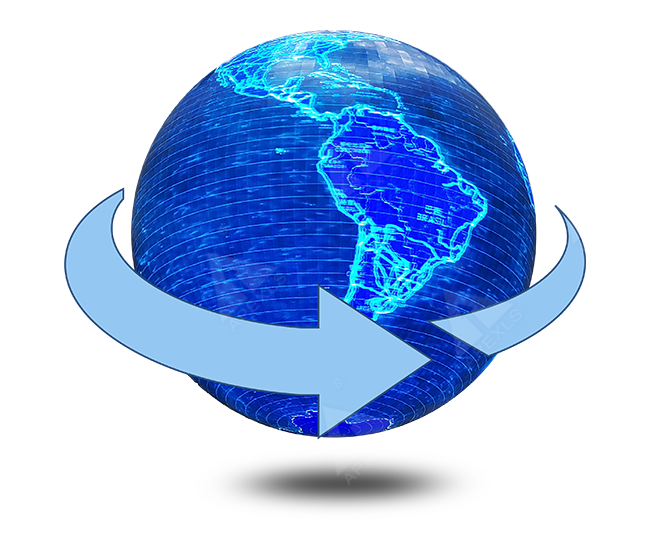

360 view angle
Model(mm): P4.8，P5，P6 ，P8 ，P10
Diameter(m)：2，2.5，3，4，5，6，8，11
Diameter, model, etc. can be customized
Patented products pioneered by peers
Excellent quality, leading technology
Many large application cases
Museums, Planetariums, Science and technology museums, Children’s palaces, Exhibition halls, Gymnasiums, Waiting halls, Hotels, Large open-air places, Railway stations, Ports, Shopping malls, Bars, etc.
First one design in led screen industry , get new record for shenzhen enterprises.
Max diameter 17m and other 16.3m 14m 1lm 8m7.2m 6m 5m

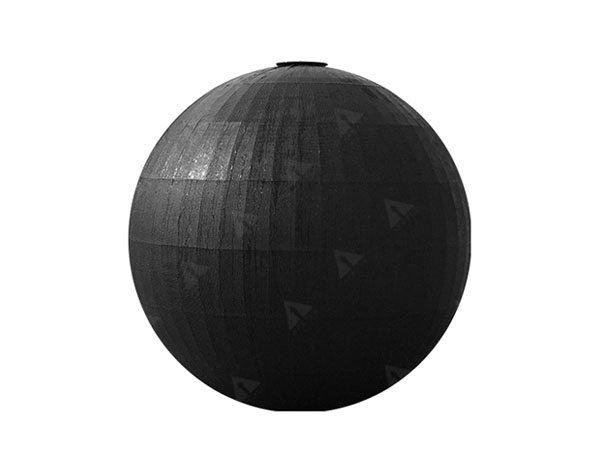

Not lighting up is also a beautiful sight

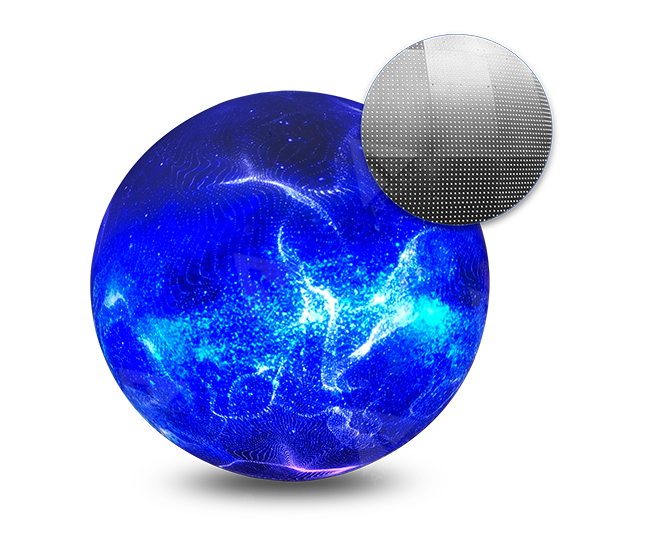

Customizable pixel pitch and diameter

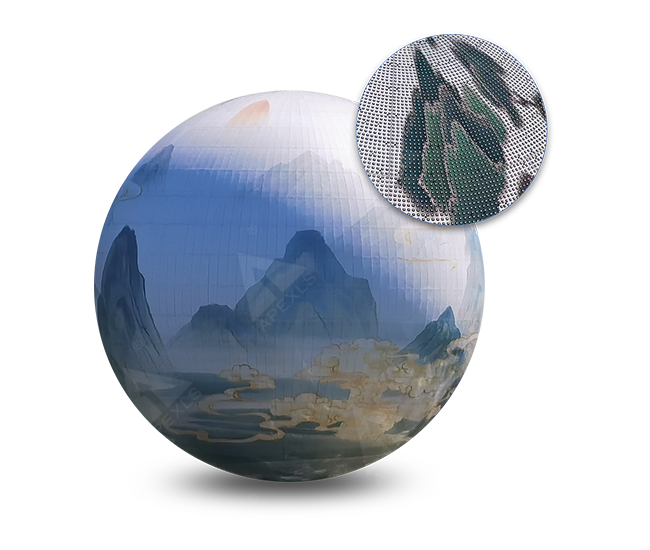

High impact visual, good eye-catching

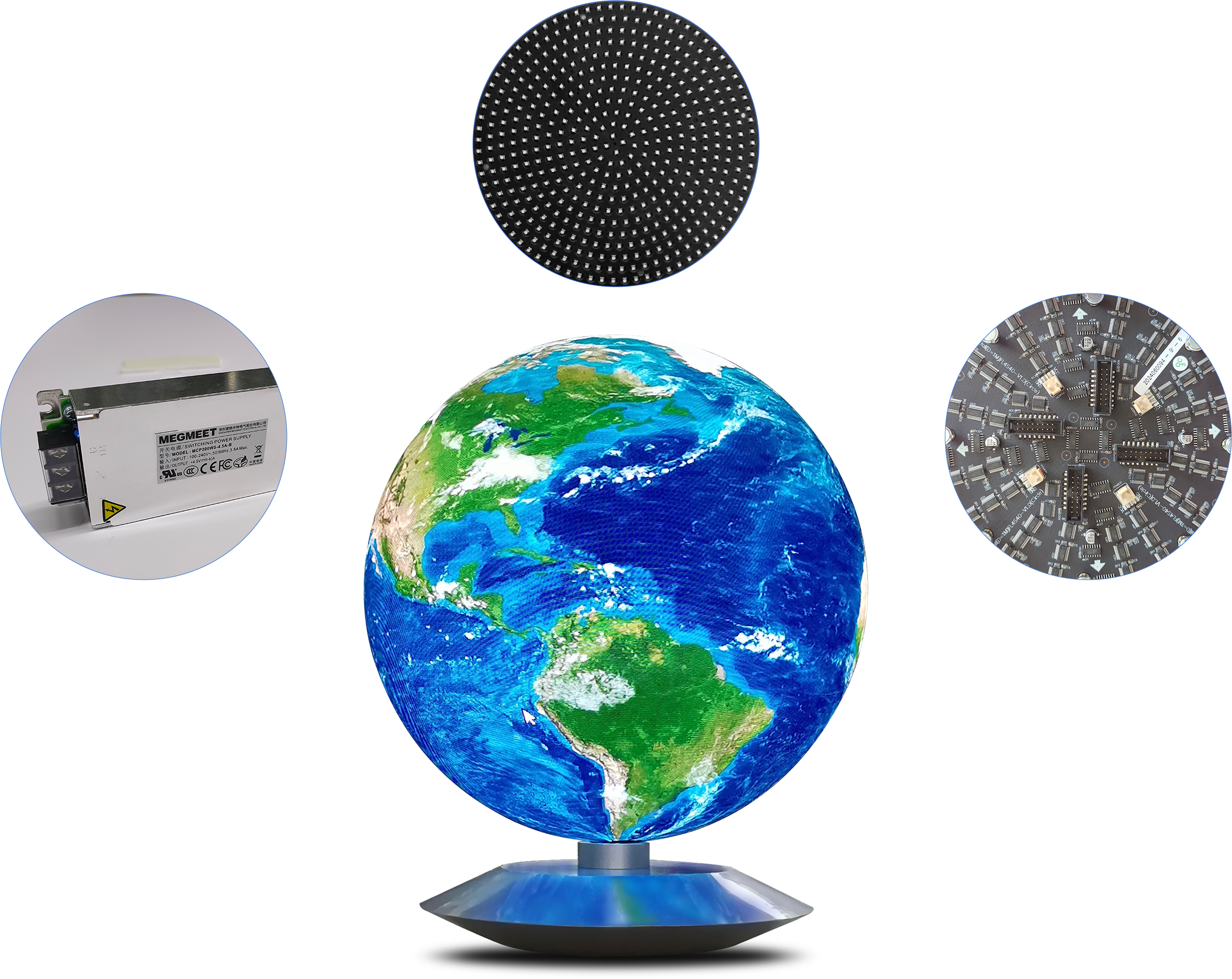

High qualitu LED beads, high brush IC, power supply
Customized PCB design with seamless splicing, tolerance 0.2mm
Waterproof, moisture-proof, dust-proof, sun-proof, cold-resistant
| Outdoor | |||||
| Model | P4.8 | P5 | P6 | P8 | P10 |
| Pixel Pitch(mm) | 4.8 | 5 | 6 | 8 | 10 |
| Diameter(m) | 2, 4 | 2.5 | 2，3 | 5 | 2，6，8,11 |
| LED Type | SMD1515 | SMD1515 | SMD1921 | SMD2727 | SMD3535 |
| Pixel Density (dots/㎡) |
43402 | 40000 | 27777 | 15625 | 10000 |
| Brightness (cd/㎡) |
5000 | 5000 | 5000 | 5000 | 7500 |
| Avg Power Consumption(W/㎡) | 400 | 400 | 350 | 260 | 450 |
| Max Power Consumption(W/㎡) | 1000 | 1000 | 800 | 650 | 1100 |
| Refresh Rate(Hz) | 1,920-3,840 | ||||
| Input Voltage | AC100-240V/50-60Hz | ||||
| Life Span | 100,000 hours | ||||
| Working Temperature | -20°C～60°C | ||||
| Working Humidity(RH) | 10%～90% | ||||
| Gray Scale | 12-16 bit | ||||
