light & thin
Install quickly
High-definition image
Die-cast aluminum
Model(mm): P1.5, P1.9, P2.6, P2.9, P3.9
Cabinet Size(mm): 500×500,500X1000

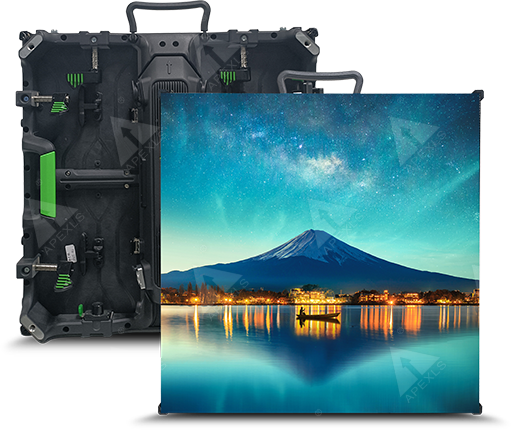

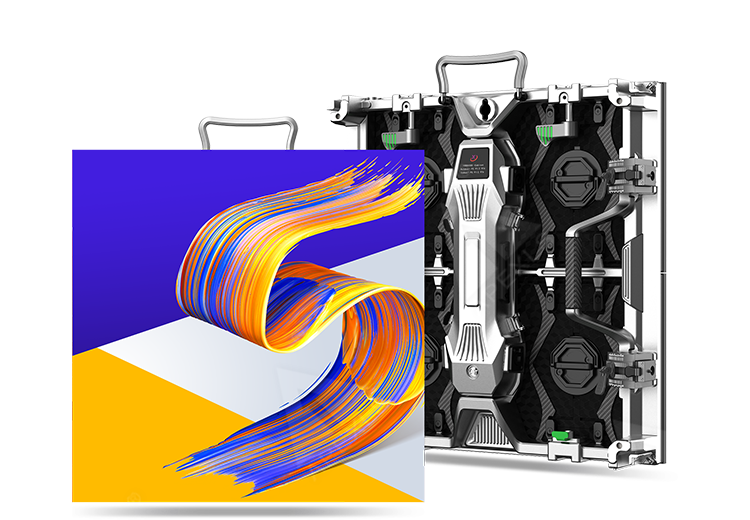

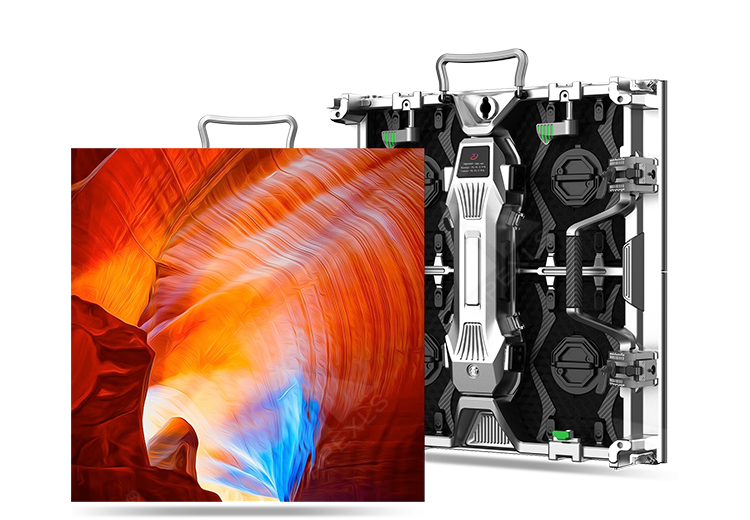

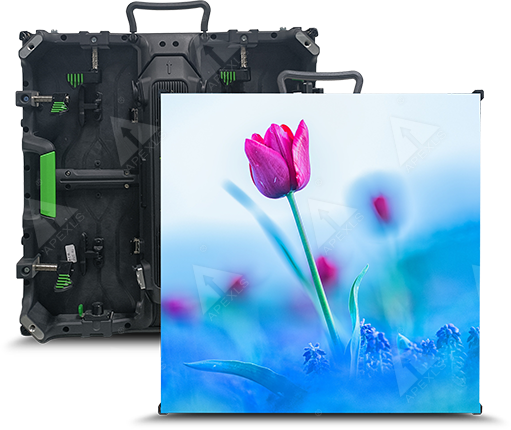

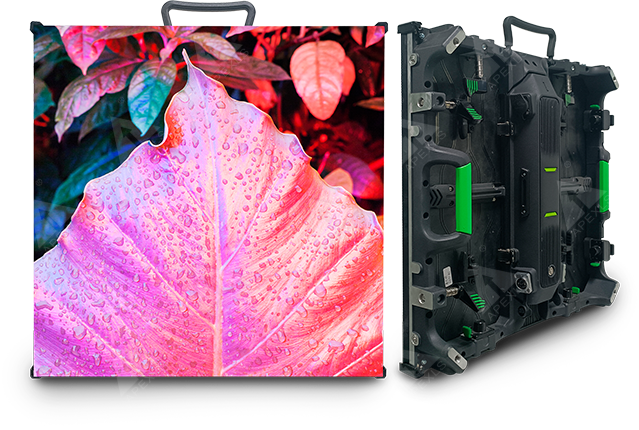

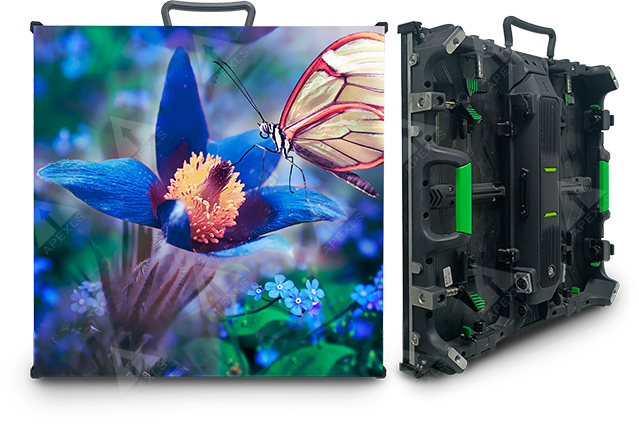

KD serial is a new generation of Apexls Rental Led Display, It adopts the concept of lightweight design, modular design of controller, module and PSUs, For easy installation and Maintenance. 500x500mm, 500x1000mm small cabinet has high flexibility, convenient to create all kinds of stage applications.
Widely used in concerts, TV shows, large-scale entertainment programs, commercial exhibitions, and other venues

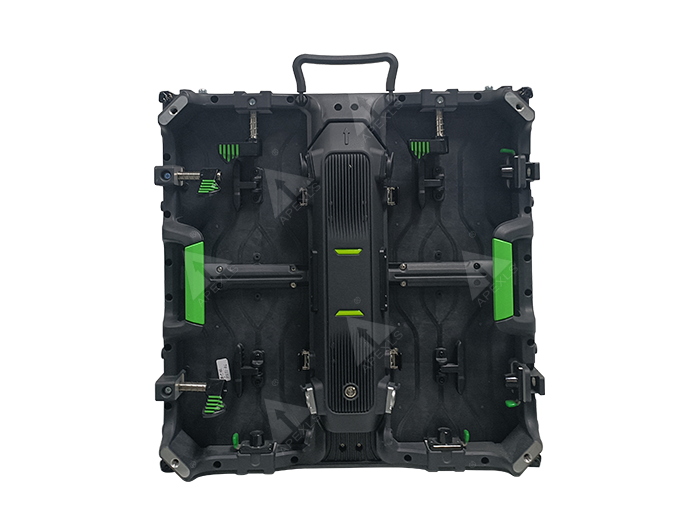

Module front and rear service, Suitable for various installation environments, improve work efficiency.Anti-knock design, compatible for floor LED tile screen usage.

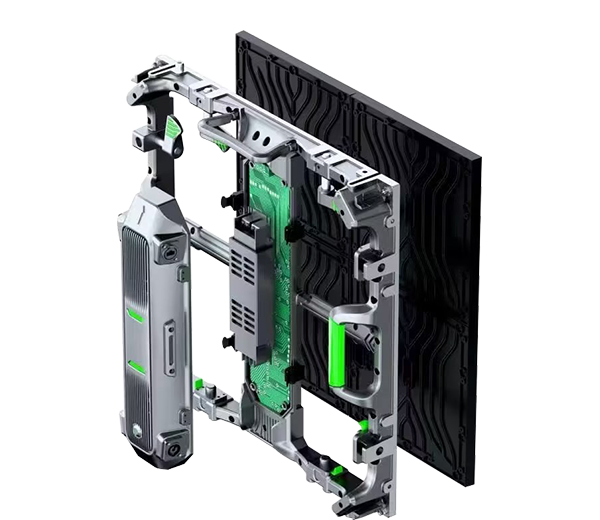

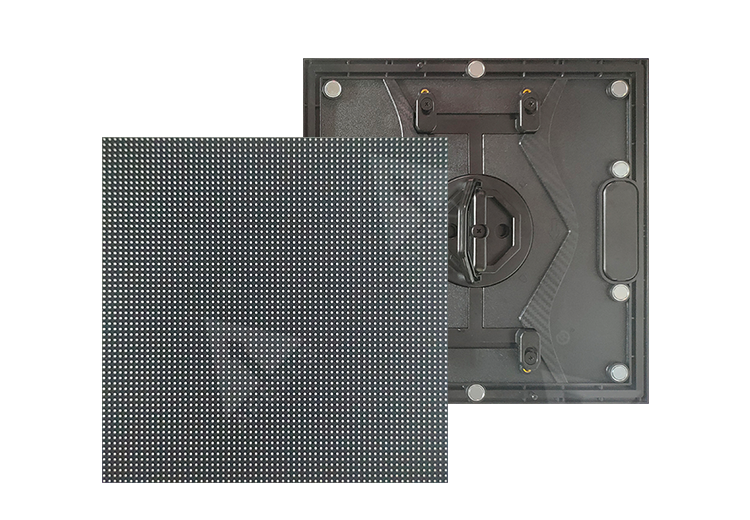

Rental series LED display adopted modular design, Convenient module & PSUs maintenance.

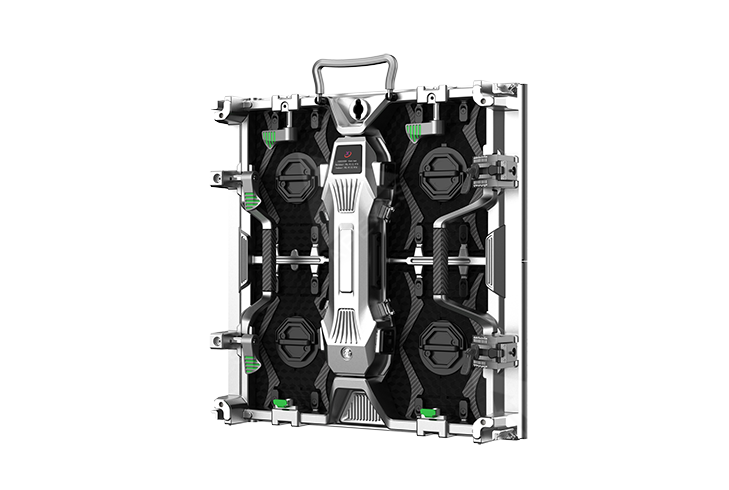

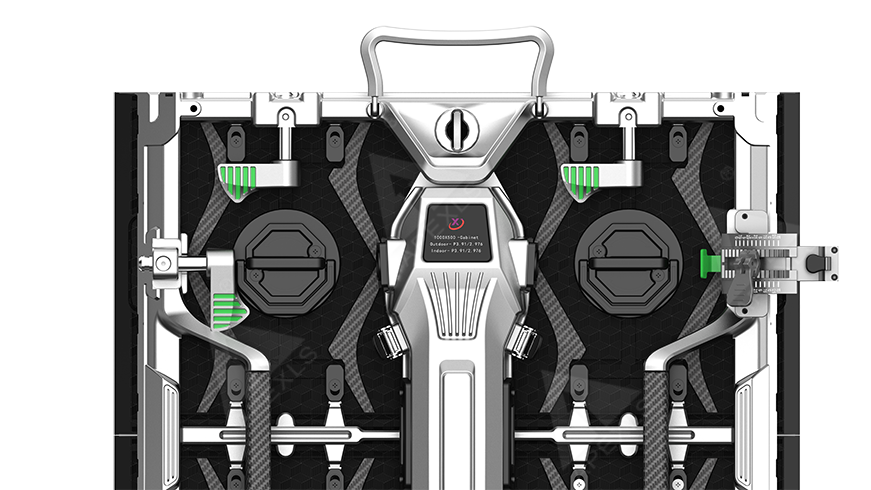

Cabinet thickness: 87mm, Equipped with a “reliable” hardware backup.

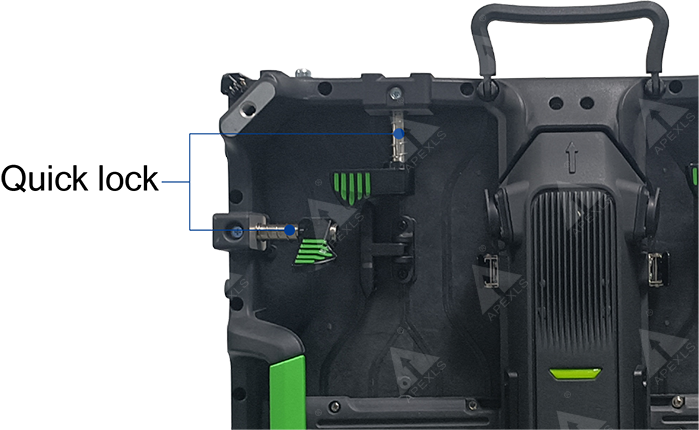

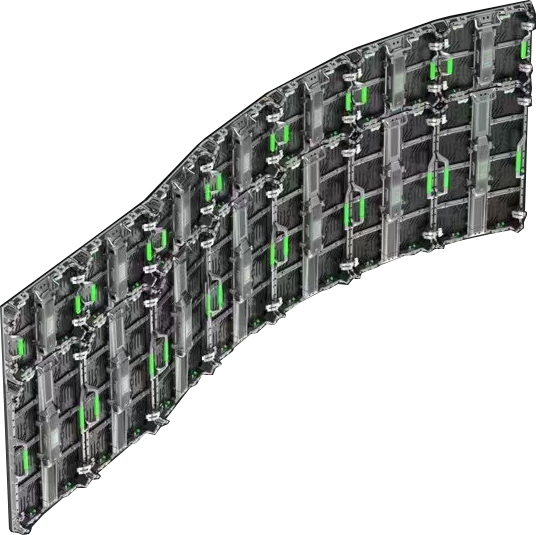

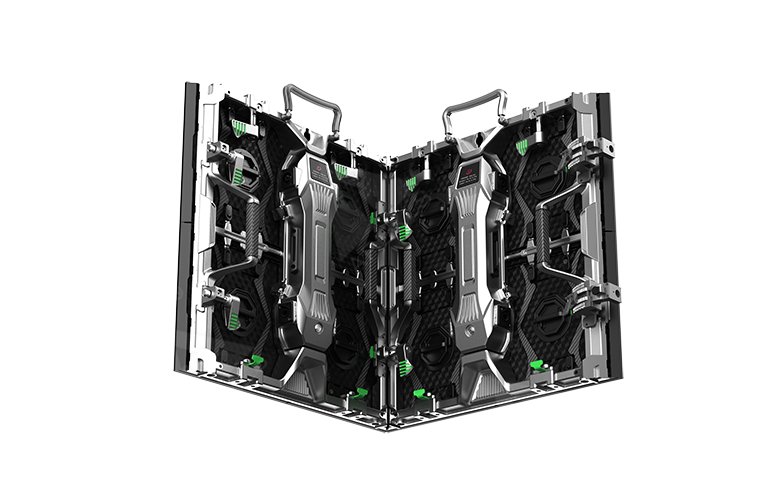

KD series support hoisting and stacking, it also provides the installation solution of the easy frame to help customers save labor costs and material costs.
| Operating environment | Indoor | Outdoor | ||||||
| Model | P1.56 | P1.95 | P2.6 | P2.97 | P3.91 | P2.6 | P2.97 | P3.91 |
| Pixel pitch(mm) | 1.5625 | 1.953 | 2.604 | 2.976 | 3.91 | 2.604 | 2.976 | 3.91 |
| Pixel density(dots/m²) | 409,600 | 262174 | 147475 | 112896 | 65536 | 147475 | 112896 | 65536 |
| Scanning Method | 1/40 | 1/32 | 1/24 | 1/21 | 1/16 | 1/24 | 1/21 | 1/16 |
| LED type | SMD1212 | SMD1515 | SMD1515 | SMD2020 | SMD2020 | SMD1415 | SMD1415 | SMD1921 |
| Module size (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Module resolution (dots) | 160×160 | 128×128 | 96×96 | 84×84 | 64×64 | 96X96 | 84×84 | 64×64 |
| Cabinet size(mm) | 500X500/500X1000(87mm thickness) | 500X500/500X1000(87mm thickness) | ||||||
| Cabinet weight(kg/m²) | 7/12.5 | 7/12.5 | ||||||
| Cabinet material | Die-casting aluminium | Die-casting aluminium | ||||||
| Maintenance Mode | Front/Rear | Front/Rear | ||||||
| Brightness(cd/m²) | 650-1100 | 650-1100 | 650-1100 | 650-1100 | 650-1100 | 4700 | 5800 | 2400 |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 |
| Gray Scale(bit) | 13-16 | 13-16 | 13-16 | 13-16 | 13-16 | 13-16 | 13-16 | 13-16 |
| Ave. Power(W/m²) | 164 | 150 | 150 | 150 | 150 | 267 | 267 | 267 |
| Max. Power(W/m²) | 410 | 410 | 410 | 410 | 410 | 800 | 800 | 800 |
