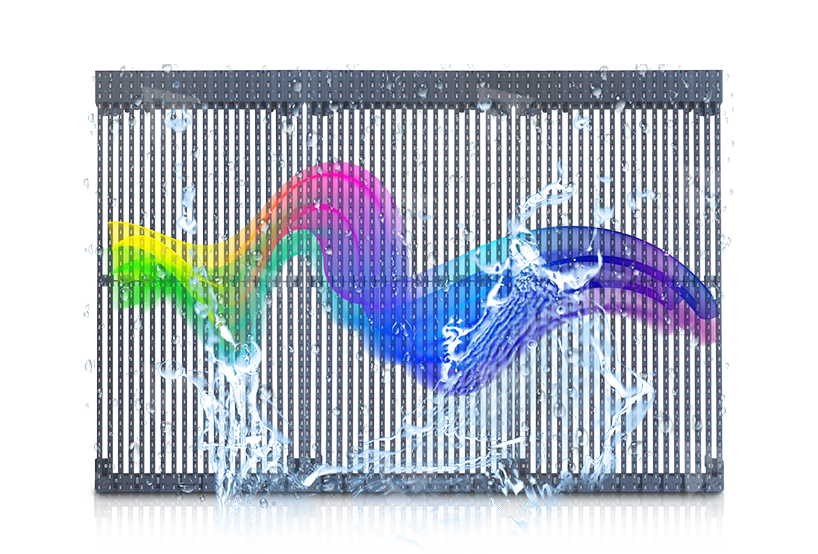

Waterproof design
High Transparency
Model(mm): P16-16, P16-33, P25-25, P33-33, P25-50

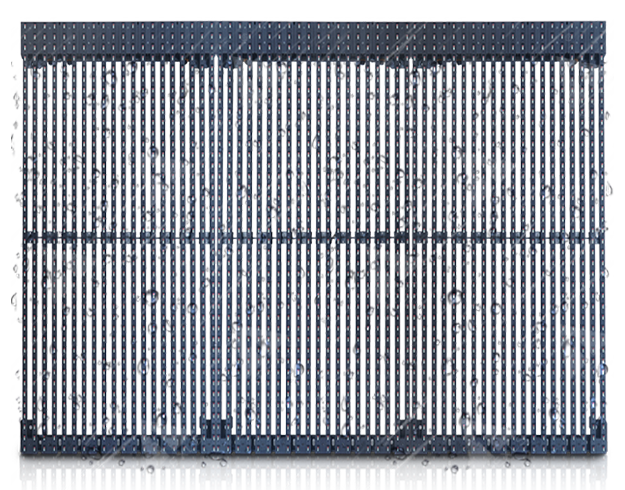

APEXLS LED Curtain Display , also called LED Mesh Display, is high transparency outdoor led display.It is 65% lighter than conventional LED display and has less requirement for steel structure than conventional LED Display. High transparency ensure it reduce much impact of the natural lighting and provide better viewing for buildings than conventional one.
Widely used at the top of buildings, facades, urban landmark buildings, municipal building,etc.

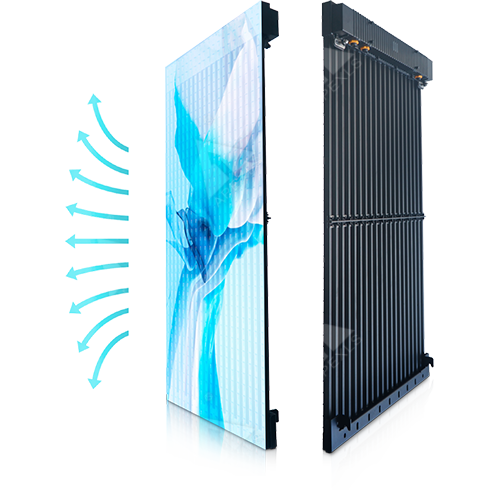

Use fan-free, noise-free heat dissipation mode; The lamp strips can be disassembled and replaced separately; Both front and rear maintenance; Can be easily installed even by non-professionals.
Using high-efficiency PFC power supply can save energy by more than 75% compared with conventional display screen; It can be applied to harsh environments such as high humidity, high salinity, strong ultraviolet rays and high low temperature

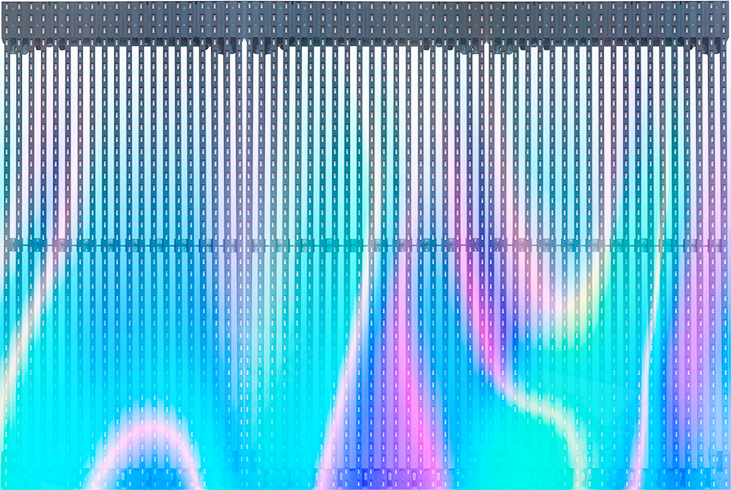

The screen with minimal requirements for steel structure is lighter than the conventional box-type display screen, and the transparency is as high as 80%, which does not affect the natural lighting and viewing requirements inside the building. The impact on the appearance of the building is reduced to lower and more transparent

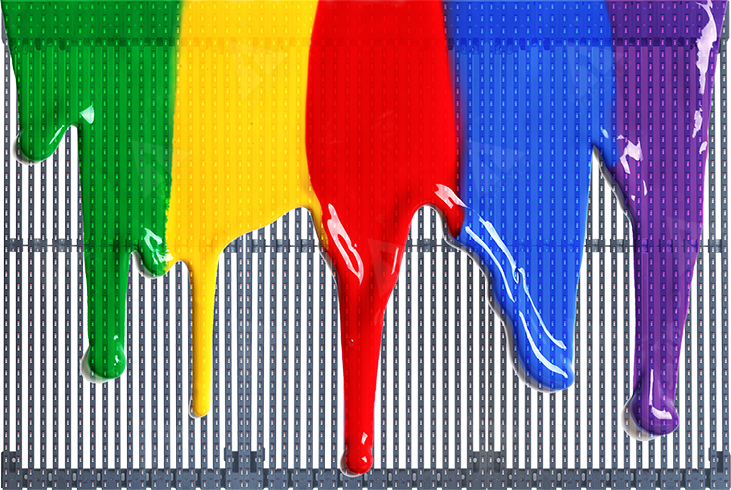

In-line lamp bead IP65 waterproof can be used outdoors for a long time
| Model | P16-16 | P16-33 | P25-25 | P33-33 | P25-50 |
| Pixel composition | 1R1G1B | 1R1G1B | 1R1G1B | 2R2G2B | 2R2G2B |
| LED type | DIP346 | DIP346 | DIP346 | DIP346 | DIP346 |
| Pixel density(dots/m²) | 3600 | 1800 | 1600 | 900 | 800 |
| Brightness（cd/m²) | 8000 | 7000 | 7000 | 7000 | 8000 |
| Power Avg.(W/m²) | 200 | 185 | 185 | 185 | 155 |
| Power Max.(W/m²) | 560 | 530 | 530 | 530 | 400 |
| Transparency rate (%) | 45 | 70 | 65 | 68 | 68 |
| Minimum view distance(m) | 16 | 25 | 25 | 33 | 37.5 |
| Cabinet size (mm) | 500×1000 | 500×1000 | 500×1500 | 500×1000 | 500×1000 |
| Cabinet weight (kg/pc) | 8 | 5 | 6.5 | 6.8 | 7 |
| Fixing structure weight (kg/m²) | 5 | ||||
| Refresh rate (Hz) | 1920-3840 | ||||
| Working temperature (℃) | -20 ~ +60 | ||||
| Working humidity (RH) | 10～90 | ||||
| Ingress protection(front & back) | IP65 | ||||
| Ventilation and heat dissipation | Natural ventilation | ||||
| Cleaning method | High-pressure water jet | ||||
| Shell material | Aluminium alloy | ||||
| Control system | Integration | ||||
| Maintenance mode | Front | ||||
| Life time (hrs) | 100000 | ||||
