Waterproof design
Front maintenanceby fast lock
Model(mm): P6.67，P8，P10

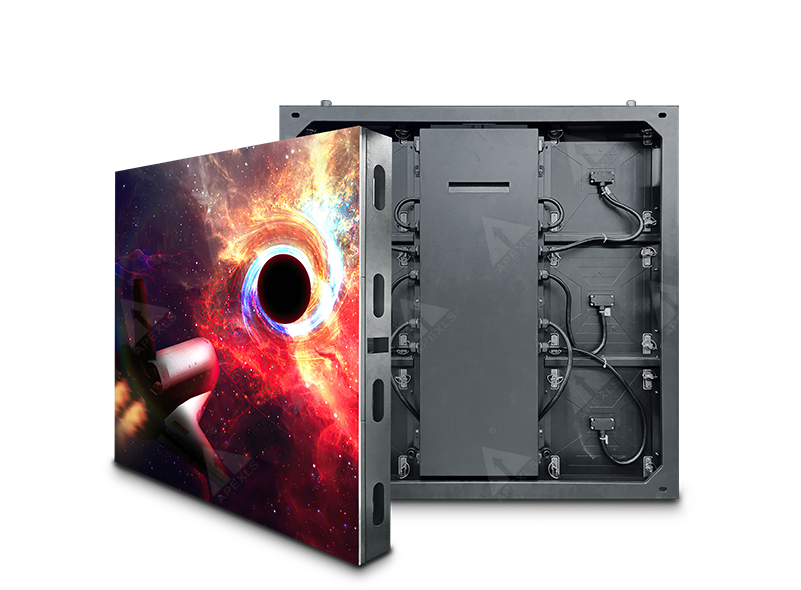

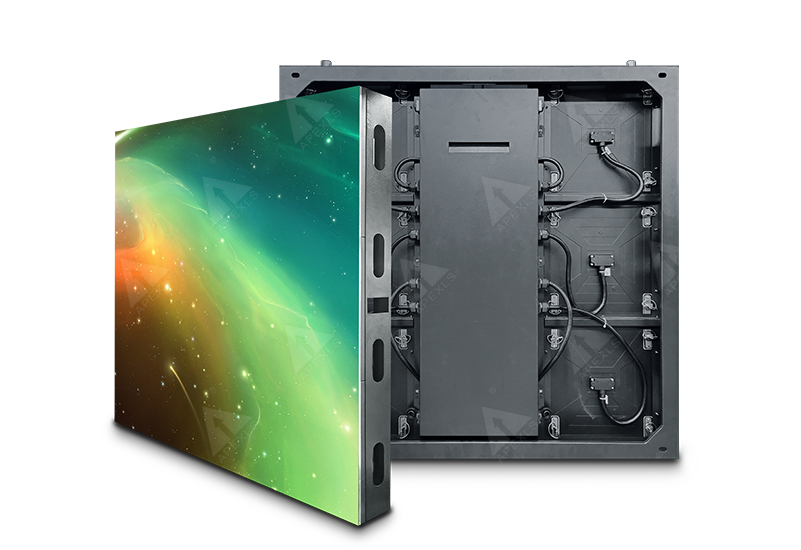

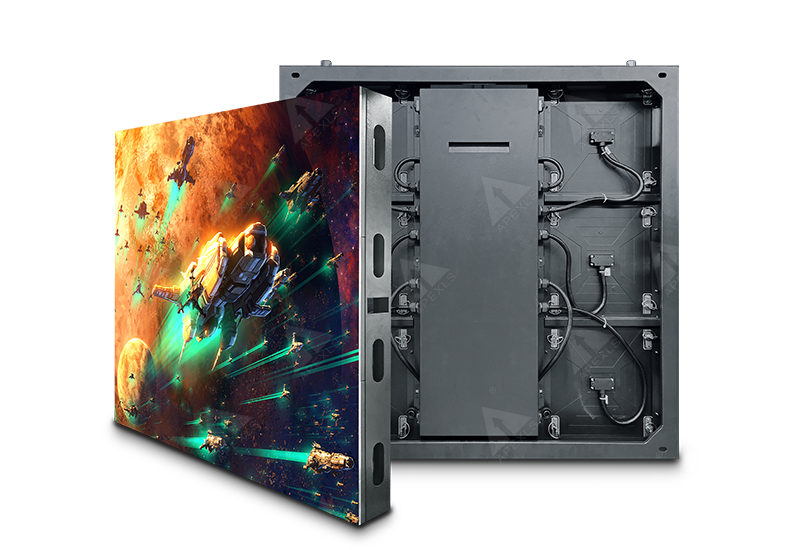

Cabinet Size(mm): 960×960
Apexls outdoor IP65 320x320mm module series are widely used in outdoor advertising such as outdoor squares, buildings, airports, railway stations, bus stations, high-speed railway stations and so on.
Outdoor billboards, Shopping mall, Commercial complex, Parking area, Theme parks, Sports stadium , Playgrounds,
Entertainment venue facades, etc.
Flexible size design can better meet customer’s requirement.

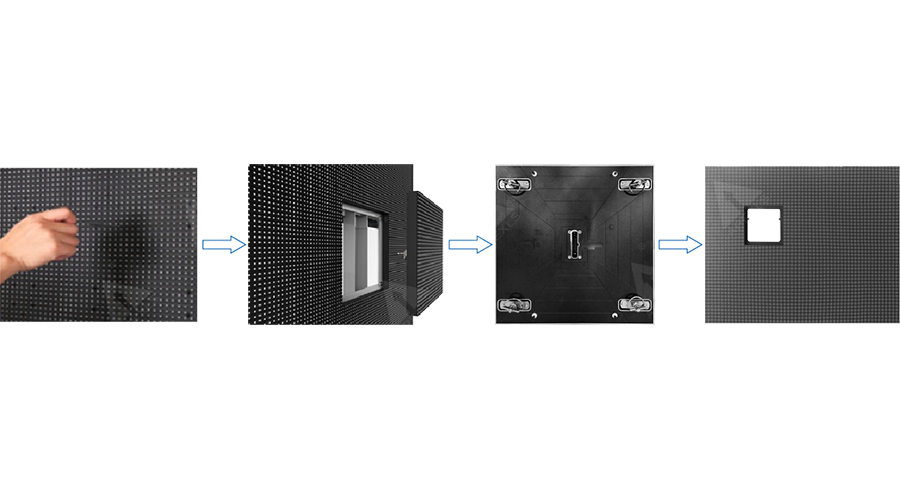

Front maintenance by fast lock

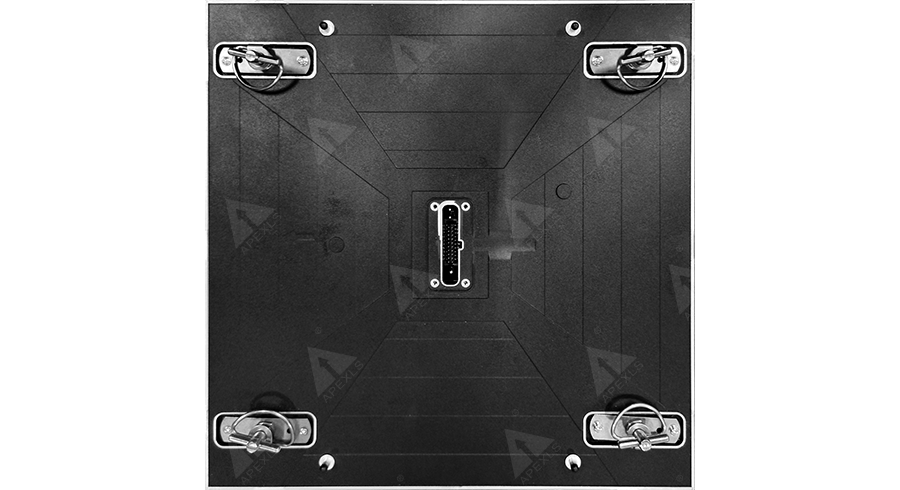

The module adopts fully enclosed module shell design with waterproof plug to achieve higher waterproof ability.

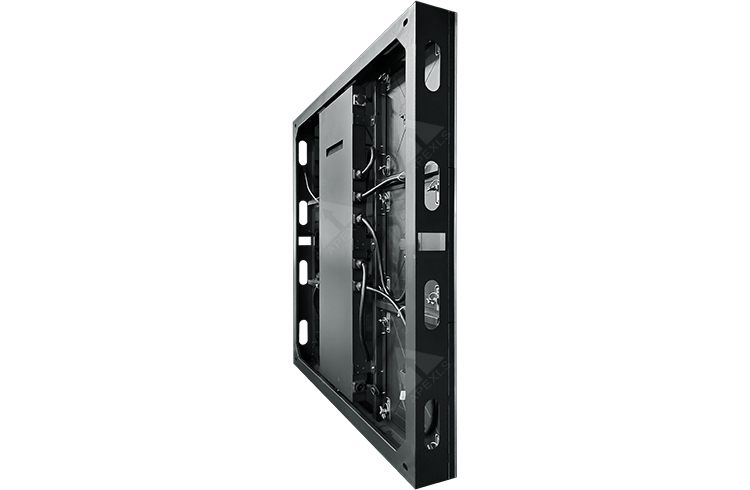

80mm thinckness.around 34.5 kg /sqm (Iron Cabinet )
| Model | P6.67 | P8 | P10 |
| Pixel Pitch(mm) | 6.67 | 8 | 10 |
| Pixel Composition | 1R1G1B | 1R1G1B | 1R1G1B |
| LED Type | SMD2727 | SMD2727 | SMD2727 |
| Pixel Density(dots/m²) | 22,477 | 15,625 | 10,000 |
| Cabinet Size(mm) | 960×960 | 960×960 | 960×960 |
| Cabinet Resolution(dots) | 144×144 | 120×120 | 96×96 |
| Module Size(mm) | 320×320 | 320×320 | 320×320 |
| Module Resolution(dots) | 48×48 | 40×40 | 32×32 |
| Cabinet Material | Aluminum / Iron | ||
| Cabinet Weight(kg) | 34.5kg(Iron) | ||
| Brightness(cd/c) | 6,000 | 5,000 | 5,500 |
| Power Avg.(W/m²) | 300 | 300 | 300 |
| Power Max.(W/m²) | 650-720 | 650-720 | 650-720 |
| Refresh Rate(Hz) | 1920~3840 | ||
| Gray Scale(bit) | 12 ~ 16 | ||
| Installation/Maintenance | Front / Rear | ||
| Certification | CE ETL FCC RoHS | ||
