light & thin
Multilayer structure
Model(mm): P1.875，P2.5 ，P3 ，P4

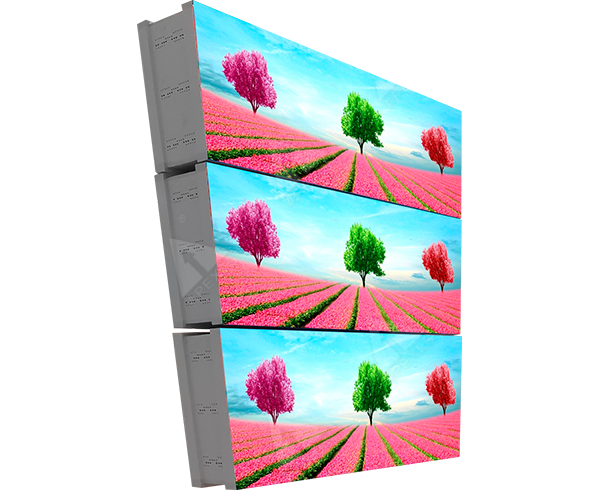

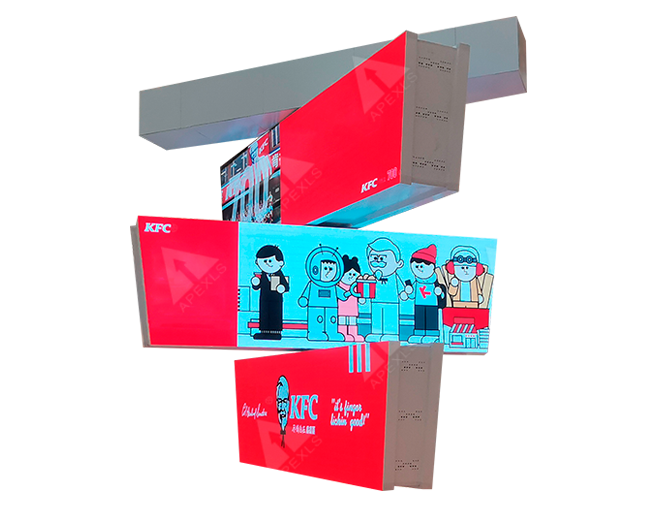

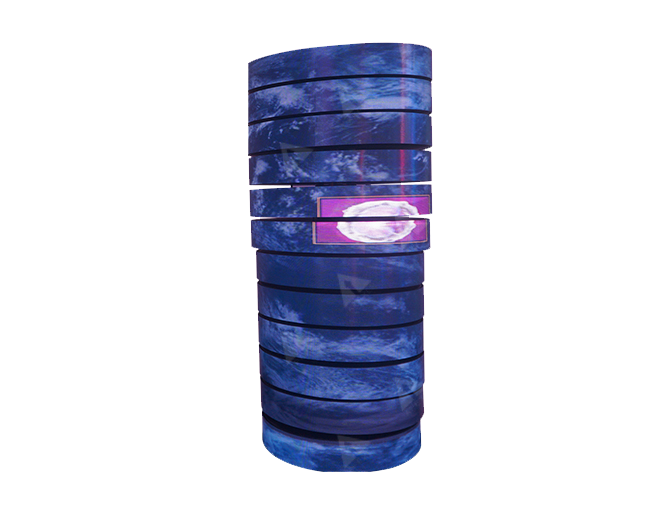

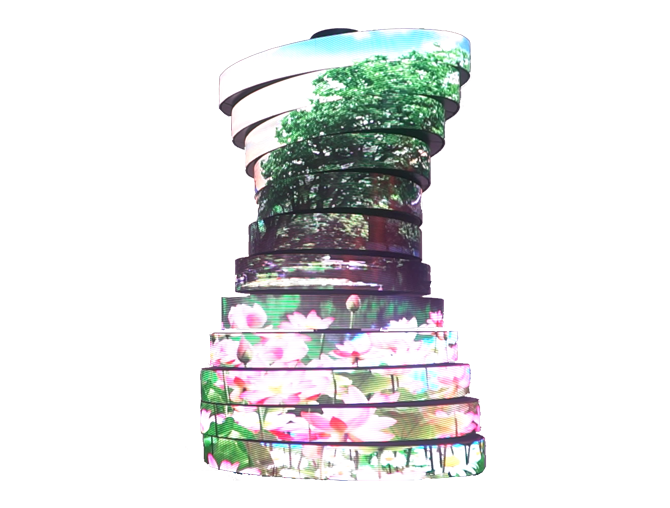

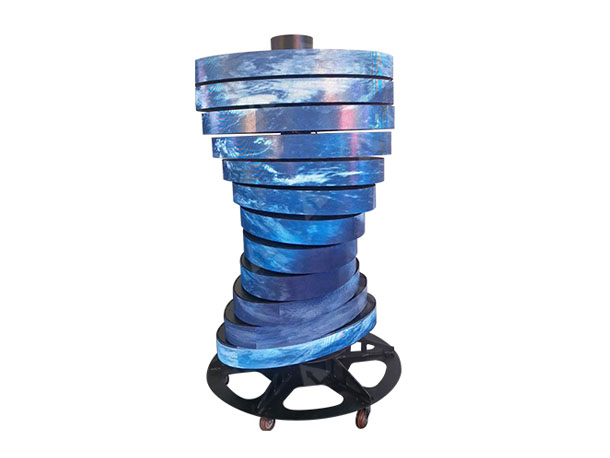

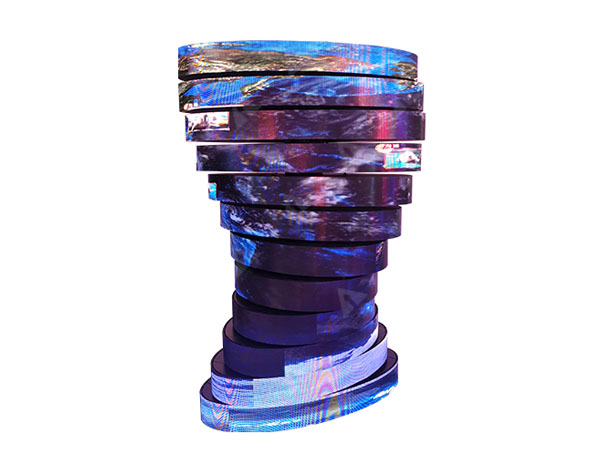

LED Rotating screen is composed of LED soft modules. Compared with traditional screens, this screens have obvious advantages. They are not only lighter and thinner in size, but also lower in power consumption than original devices.
Shopping mall，Hotel，Night Club，Bars，Stage，Event Show，Exhibition，Science and technology Museums，Stadium，Retail Room，Theater
Rotating led screen perfectly display videos, pictures, animation, logo, texts, messages, etc. Using flexible high temperature resistant FPC PCB, bending resistant silicone module bracket, embedded magnet sheet, can freely serve the creation of curved or twisted led display.
360 Wide viewing angle, no distortion or color distortion when viewing the screen image at any angle within the range.
Under the control of the rotating system, the sectionalized led screen units cooperate with each other, and the rotating motion coordinates with the video picture. Regardless of the content, just from the appearance, they have a powerful eye-grabbing effect.
There is a wide selection of shapes for rotating screens, and our team has an average of more than 20 years of experience in creative screen design and manufacturing. So we can customize according to different installation environment and needs, including shapes, pixel pitch!
| KC Series Rotating LED Display | |||||
| Model | P1.875 | P2.5 | P3 | P4 | |
| Pixel Pitch(mm) | 1.875 | 2.5 | 3 | 4 | |
| Diameter(m) | 1.875 | 2.5 | 3 | 4 | |
| LED Type | SMD1515 | SMD2121 | SMD2121 | SMD2121 | |
| Pixel Density (dots/㎡) |
284445 | 160000 | 111111 | 62500 | |
| Brightness (cd/㎡) |
800-1000 | 800-1000 | 800-1000 | 800-1000 | |
| Refresh Rate(Hz) | 3,840 | ||||
| Input Voltage | AC100-240V/50-60Hz | ||||
| Life Span | 100,000 hours | ||||
| Cabinet Material | Iron/ Aluminum | ||||
| Discrete Out of Control Point(%) | <0.01% | ||||
| Gray Scale | 12-16 bit | ||||
| Supplier Type | Original manufacturer, ODM,OEM | ||||
0
· Product: P4
· Screen Size: 5 sqm
· Location: November 2019
0
· Product: P6
· Screen Size: 736 sqm
· Location: Chongqing, China
0
· Product: P2.5
· Screen Size: 22.12 sqm
· Location: December 2021
