Make your reading experience unique
Strong sense of participation and realism
Model(mm): P1.25, P1.53, P1.56, P1.66, P1.86, P1.88, P2

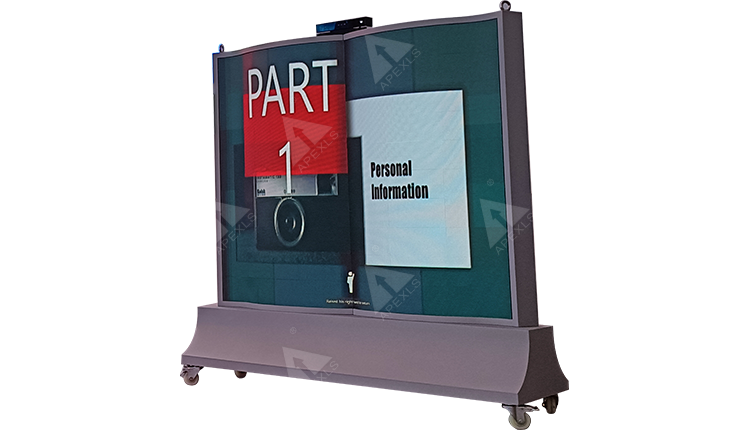

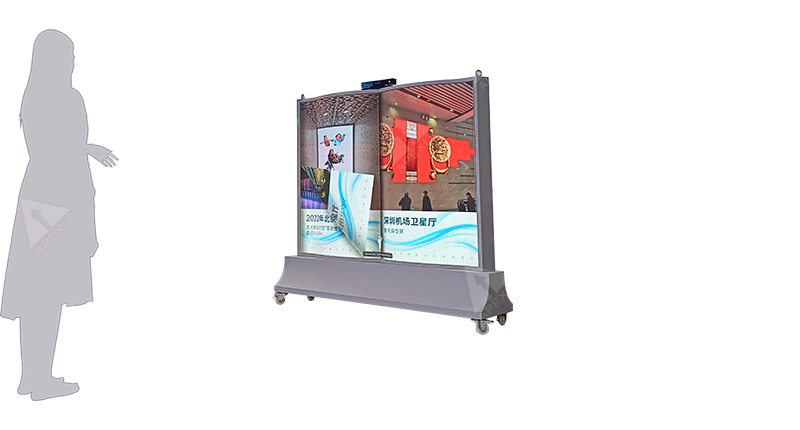

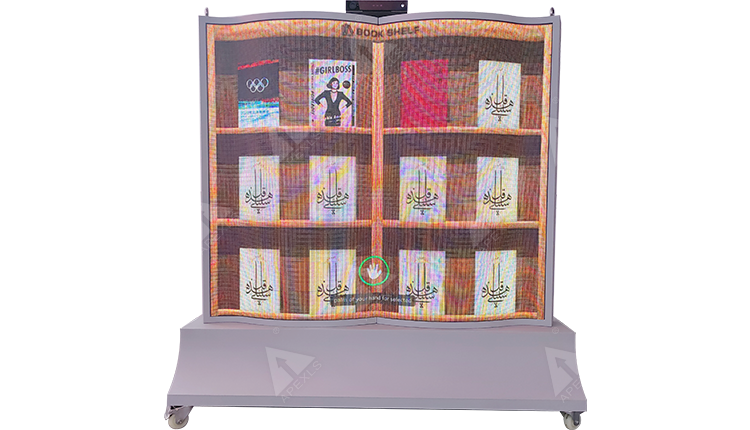

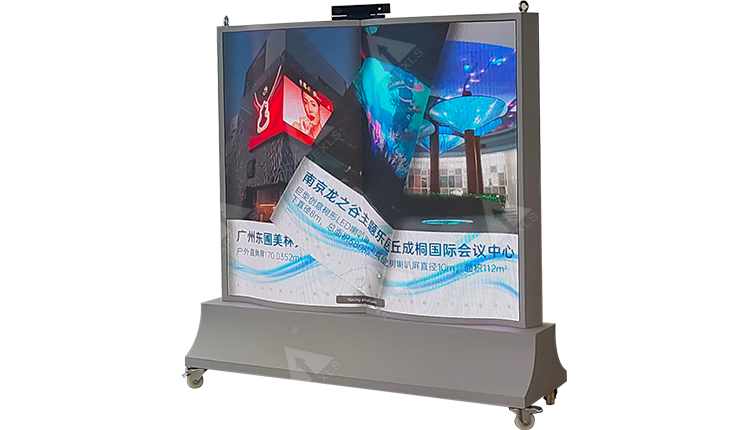

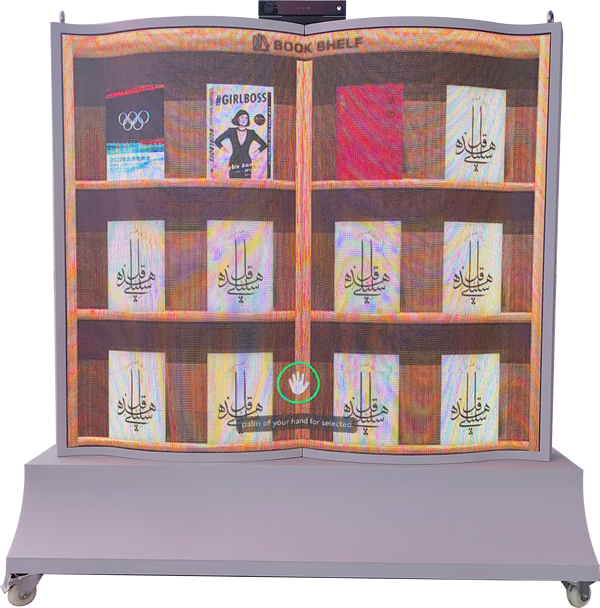

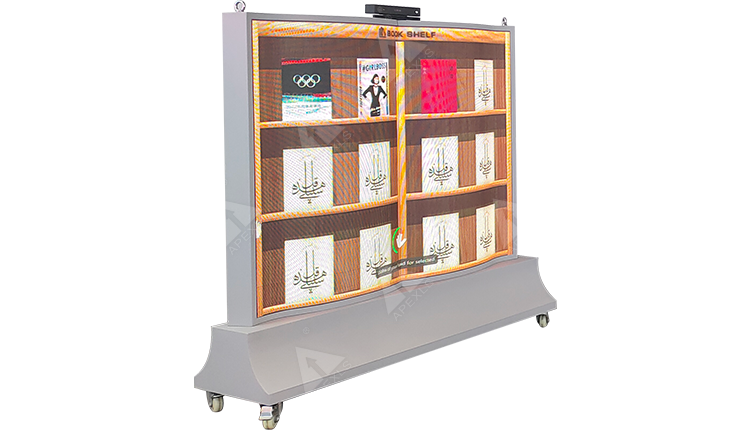

The Kangshuo Exhibition Book Flipping Screen uses an LED display screen as the display surface, which allows users to flip books through their physical senses. Users wave their arms in front of the screen to flip through the book content on the screen. By simulating the flipping effect of paper books, the required content is displayed, allowing the audience to understand and experience it in an immersive manner.
Car exhibition hall, museum, science and technology museum, exhibition hall, school history museum, art museum, library, government agency, finance, telecommunications service institution, educational institution, newspaper, and newspaper distribution department.
The audience can freely choose the content they are interested in for browsing, with a strong sense of participation, realism, and fun.
The display method is novel, which can better attract the attention of the audience and make people’s eyes shine; It can be images, documents, videos, etc., while also saving space resources.

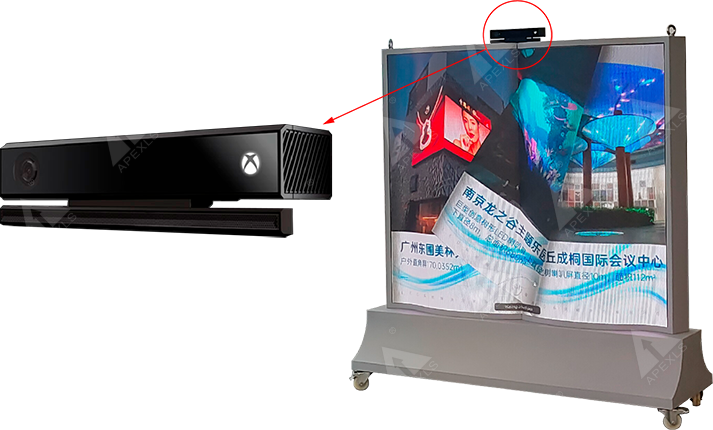

Adopting infrared tactile interaction program, it can quickly react and make it easier for viewers to browse and view. It supports book flipping, such as flipping forward, flipping back, and other interactive gestures.
Simple design, easy operation, small footprint for the flipping screen, and easy to move.
| 320×160 | |||||||
| Model | P1.25 | P1.56 | P1.86 | P2 | P2.5 | P3 | P4 |
| Pixel Pitch(mm) | 1.25 | 1.568 | 1.86 | 2 | 2.5 | 3.076 | 4 |
| LED Type | SMD1010 | SMD1212 | SMD1212 | SMD1515 | SMD1515/2121 | SMD1515/2121 | SMD2121 |
| Pixel Density (dot/m²) | 640,000 | 406,406 | 288,906 | 250,000 | 160,000 | 105,625 | 62,500 |
| Module Size (mm) | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 |
| Module Resolution (dots) | 256×128 | 204×102 | 172×86 | 160×80 | 128×64 | 104×52 | 80×40 |
| Refresh Rate (Hz) | 3,840 | 3,840 | 3,840 | 3,840 | 3,840 | 3,840 | 3,840 |
| Brightness (nits) | 650-800 | 650-800 | 650-800 | 650-800 | 650-800 | 650-800 | 650-800 |
| Max. Power (W/m²) | 165 | 165 | 150 | 150 | 150 | 150 | 150 |
| Ave. Power (W/m²) | 550 | 550 | 550 | 550 | 550 | 550 | 550 |
| 240×120 | |||||||
| Model | P1.25 | P1.57 | P1.87 | P2 | P2.5 | P3 | P4 |
| Pixel Pitch(mm) | 1.25 | 1.579 | 1.875 | 2 | 2.5 | 3.076 | 4 |
| LED Type | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD1515/2121 | SMD1515/2121 | SMD2121 |
| Pixel Density (dot/m²) | 640,000 | 401,135 | 284,444 | 250,000 | 160,000 | 111,111 | 62,500 |
| Module Size (mm) | 240×120 | 240×120 | 240×120 | 240×120 | 240×120 | 240×120 | 240×120 |
| Module Resolution (dots) | 192×96 | 152×76 | 128×64 | 120×60 | 96×48 | 80×40 | 60×30 |
| Refresh Rate (Hz) | 3,840 | 3,840 | 3,840 | 3,840 | 3,840 | 3,840 | 3,840 |
| Brightness (nits) | 600 | 600-800 | 600-800 | 600-800 | 8,001,000 | 8,001,000 | 8,001,000 |
| Max. Power (W/m²) | 210 | 210 | 200 | 200 | 180 | 175 | 160 |
| Ave. Power (W/m²) | 700 | 700 | 680 | 680 | 600 | 600 | 560 |
0
· Product: P6
· Screen Size: 73 sqm
· Location: Chengdu, China
0
· Product: P10
· Screen Size: 19m long, 8.75m high, 35cm thick
· Location: Beijing, China
0
· Product: P4
· Screen Size: 5 sqm
· Location: November 2019
